Product Description

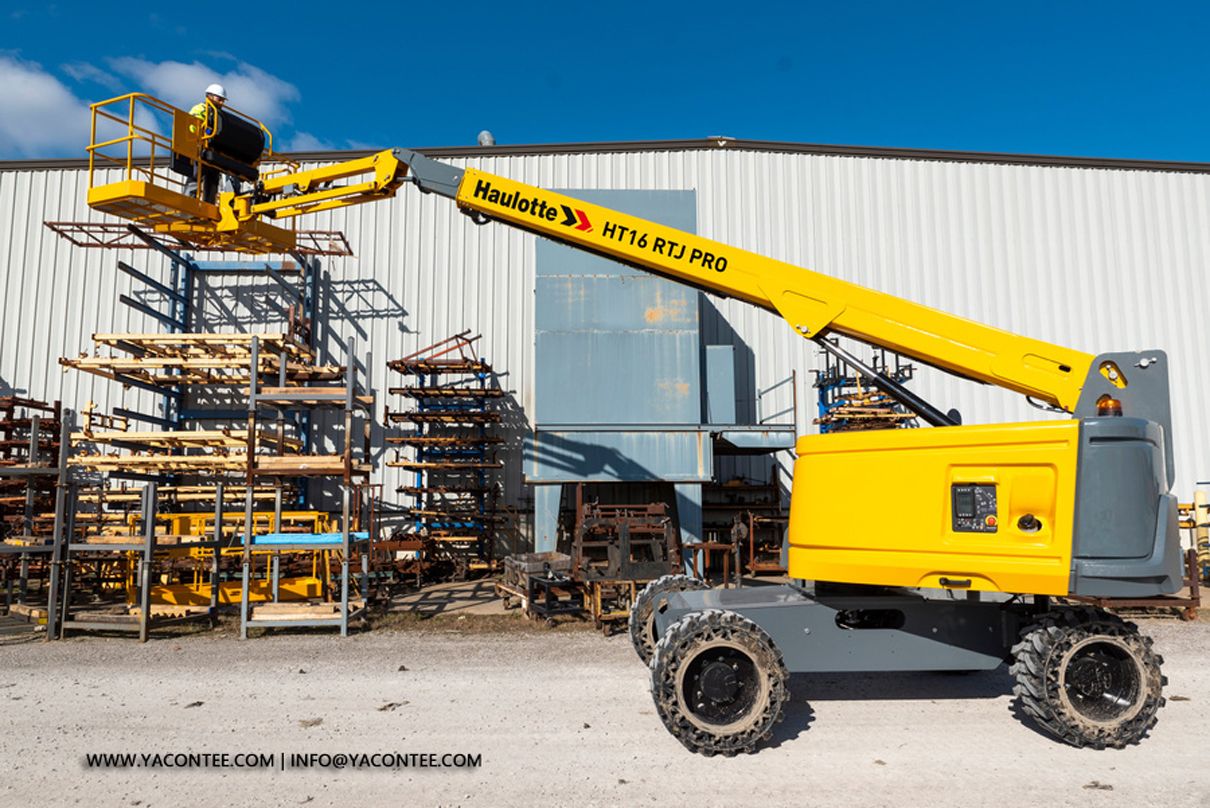

Our HT16 RTJ PRO telescopic boom is intended to work in the most constrained environments and on the most demanding jobs. HT16 RTJ PRO includes our latest advancements to provide you with the safest solutions on the market for working at heights, increasing productivity on your construction sites, and optimizing machine uptime. The HT16 RTJ PRO is equipped with an oscillating axle, which adjusts the axle position to adapt to the terrain and keep the wheels in contact with the ground. In 4-wheel steering mode, the turning radius is reduced, allowing you to operate through tight or congested situations.
-
Standard Features
Haulotte Activ' Shield bar: anti-entrapment system
Haulotte Activ' Lighting System: improved visibility
Haulotte Activ' Screen: on-board diagnostics
Haulotte Stop Emission System: automatically turns the engine off & on
4 wheel drive
4 wheel steer
Oscillating axle
Differential : permanent limited slip & operator controlled locking rear
Smooth & proportional movements
Universal telematic plug
Up to 4 simultaneous movements
Cured-on solid tires
Swing out engine tray
Upper control box protection and tool tray
Sound and light alarm for tilt and load
Motion alarm and rotating beacon
-
Datasheet
Working height 16.1 m Platform height 14.1 m Horizontal outreach 13 m Lift capacity 250 kg (2 pers.) Platform size 1.83 x 0.76 m Length - stowed 9.16 m Storage / transport length 6.68 m Overall width 2.29 m Height - stowed 2.47 m Storage / transport height 3.06 m Vertical jib rotation 133° (+68/-65) Platform rotation 178° (+89/-89) Boom rotation angle +75°/-13° Turntable rotation 360° continuous Tailswing 93 cm Wheelbase 2.35 m Ground clearance 33 cm Tilt 5 ° Drive speed 5,2 km/h Gradeability 45 % Turning radius - outside 4.35 m Tyres - foam-filled 850X340 mm Engine Kubota 18.5kW (Stage 5 & NRC) Weight 7930 kg Width - with extended axles N/A Fuel tank 150 l Hydraulic tank 150 l Maximum wind speed rating 45 km/h -
Work Diagram
