Product Description

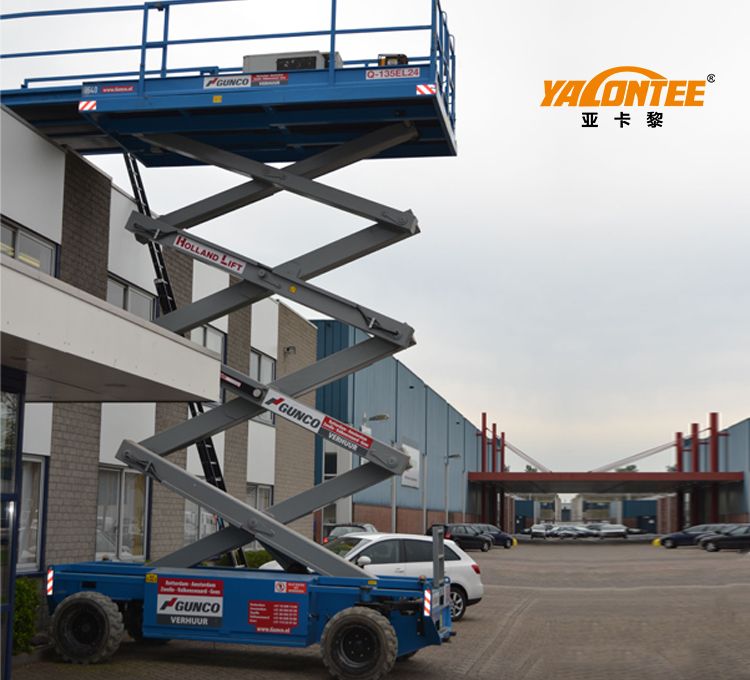

The HL-160E24 electric scissor-type aerial work vehicle produced by Hollandlift Company of the Netherlands has a large platform and a large load design. It uses a quiet and environmentally friendly large-capacity battery as the power source. The width is 2.4 meters. Ideal for indoor or outdoor use, it is also a cost-effective scissors-type aerial work vehicle.
-
Standard Features
Technical characteristics:
Quick connect on / off control box
counter
230V to platform power cord
Driving at full height
Proportional control
4-wheel steering
Swing axis
Horizontal balance leg
Emergency descent system
Stop warning system when descending to 2 meters
Suitable for indoor and outdoor
-
Datasheet
型号：HL-160E24Technical data 技术参数Working height工作高度15.5米Lift capacity承载能力750公斤Platform height平台高度13.5米Platform size 平台尺寸4.26X2.3米Height (stowed)贮藏高度3.06米Width (m)宽度2.39米Length (m)长度4.64米Gradeability爬坡能力25%Power source动力源48伏– 400安培时K5Weight重量7590公斤
-
Work Diagram
