Product Description

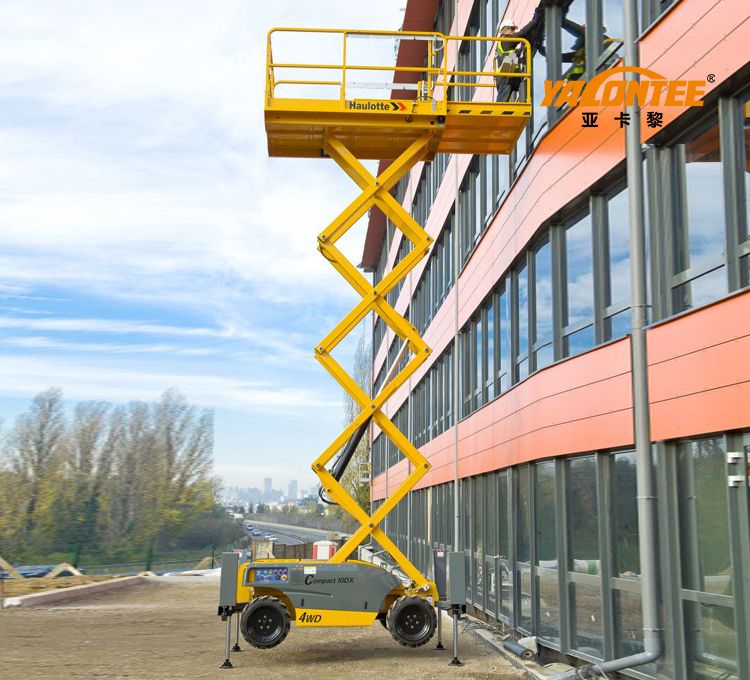

The Compact10DX off-road scissor climbing platform from French business Haulotte is a low-cost equipment with a working height of 10 meters and a load capacity of 565 kilograms. It utilizes a powerful diesel engine, off-road solid tires, full-ratio control technology, and the entire The equipment is visually appealing and stylish, making it ideal for usage on comparable construction projects.
-
Standard Features
Scissor climbing platform
Hydraulic differential lock improves traction on rough terrain.
Manual emergency descent system
Scalable platform
Full Proportional Control
Outstanding off-road performance
four-wheel drive
Automatic differential wheel lock
Strong climbing ability (40%)
Ground clearance 28cm
Robust and easy to maintain
Outriggers in the body area
Platform control box durable and reliable
Simple component layout for easy maintenance
Built-in diagnostic tools
high working efficiency
Full Proportional Control
Small turning radius
Rugged, reliable, and easy to maintain
-
Datasheet
Working height 10.28 m Platform height 8.28 m Lift capacity 565 kg (3 pers.) Platform length 2.45 m Extended platform length 3.7 m Platform extension length 1.2 m Platform width 1.45 m Storage height 1.59 m Height - stowed 2.44 m Width 1.78 m Length 3.17 m Wheelbase 1.84 m Drive speed 0.8 - 5.5 km/h Maximum drive height 8.15 m Gradeability 40 % Tilt alarm 3 ° Lift / lower speed 35 s / 46 s Turning radius - outside 3.5 m Tyres - foam-filled 26 x 12 - 16.5 Engine Kubota, 18.5 kW (Stage 5 in EU) Hydraulic system capacity 75 l Weight 3 520 kg Platform size - extended 3.7 x 1.45 m Number of extensions 1 Ground clearance 28 cm Lift capacity on the extension 150 kg -
Work Diagram
