Product Description

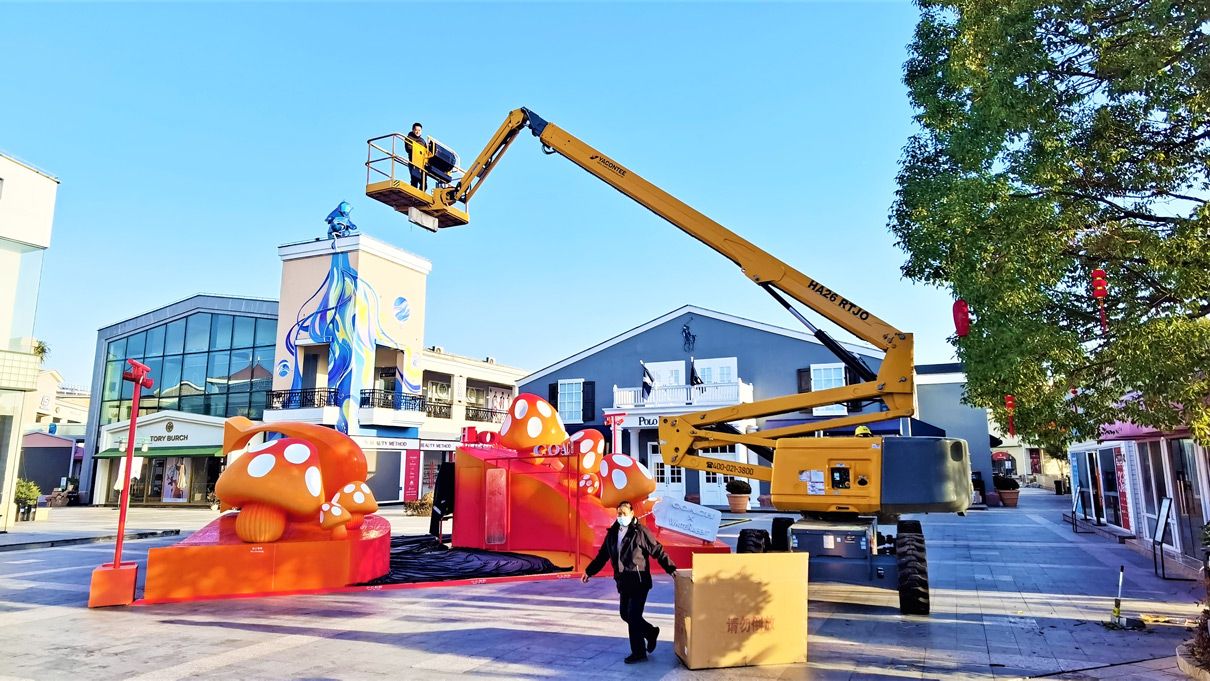

The Haulotte RTJ family of articulating booms is designed to work in the most restricted situations and on the most demanding tasks. Haulotte's knowledge enables safe operation of all RTJ articulating booms up to 43m. The HA26 RTJ PRO is equipped with an oscillating axle, which adjusts the axle position to adapt to the terrain and keep the wheels in contact with the ground. In 4-wheel steering mode, the turning radius is reduced, allowing you to operate through tight or congested situations.
-
Standard Features
Haulotte Activ'Screen: embedded diagnostic system on lower control box, with color screen
Haulotte Activ'Shield Bar 2.0
Haulotte Activ'Lighting System, safe load
Haulotte Stop Emission System: automatic engine stop system
Universal telematics plug
4 wheel drive, 4 wheel steer
Front oscillating axle
4 simultaneous movements
Automatic differential wheel lock
Upper control box cover
Tool tray
Large modular Haulotte basket 2.44 m x 0.91m
Drop bar entry gate
AC power to platform (110 / 230 V)
Swing out engine tray
Sound and light alarm for tilt and load
Rotating beacon
Travel alarm
Electric pump system and emergency descent
12 V battery / electrical control system
Engine pre-heater with light indicator
Low fuel level indicator (upper control box), fuel gauge (lower control box)
-
Datasheet
Working height 26.4 m Platform height 24.4 m Horizontal outreach 17.5 m Up and over clearance 9.3 m Lift capacity 250 kg (2 pers.) - option : 350 kg Platform size 2.44 x 0.91 m Length - stowed 11.8 m Width 2.48 m Height - stowed 2.97 m Vertical jib rotation 133° (-65°/+68°) Platform rotation 180° Turntable rotation 360°continuous Tailswing 0.76 m Wheelbase 2.8 m Ground clearance 48 cm Tilt 4° Drive speed 5 km/h Gradeability 45 % Turning radius - outside 6.55 m Power source Kubota, 36.5kW (49.6hp), Stage 3A Weight 15 500 kg Storage / transport length 9.4 m Storage / transport height 2.98 m Hydraulic system capacity 140 l Fuel tank capacity 80 l Tyres - solid rough terrain 1025x365 mm Maximum wind speed rating 45 km/h -
Work Diagram
