Working Height：26 m-
Product Description
Ruthmann-Bluelift's SA26 crawler lift has a 26-meter operating height, a curved arm boom design structure, a trackless walking method, a load capacity of 250 kg, a wireless remote control system, and a very soft over-control performance, emphasizing humanity and providing employees with a comfortable operating experience, as well as powerful and diverse functions that allow them to quickly and easily reach the point where work is required.
-
Standard Features
Fast moving aluminum basket
Hoop rotation
I-Performing electric pump with automatic start / stop system (patented)
230V power socket in basket
Interactive multilingual display radio remote control
Independent axle track adjustment system
Multi-zone stabilizer settings (3 different setting positions)
Torque limiter
Automatic center position of turntable
Self-stabilizing system
Automatic start and stop of engine and speed control
Proportional and synchronous electro-hydraulic control
Proportional Track Drive with Hydraulic Brake System
Dual-drive speed system with safety control
Drive cross slope alarm with safety stop
Lifting boom (with selector lever) for driving
Interlocking Legs / Booms
Emergency button with engine shutdown
Easy emergency descent procedure
Platform emergency descent hand pump
Outrigger cylinder rod, cap on tank and emergency controls
Modem connection plug for remote diagnostics / software upgrade
Production according to EN280 standard and international safety regulations
-
Datasheet
Working height
26 m
Lifting height
24 m
Lateral outreach
14.5 m
Up and over clearance
9.5 m
Basket size
1,3m x 0,7m x 1,1m
Total length
4.91 m
Total width
0.94 m
Total height
1.98 m
Basket of rotation
±90°
Range of rotation
340°
Wheelbase
860 mm
Ground clearance
0.16 m
Basket load
250 KG
Travel speed
1.5 KM/H
Gradeability
28 %
Turning radius
3.5 m
Overall weight
3350 0kg
Jacking dimension
4.44 m×4.30 m
Power
Engine+Electric motor
Wind speed
12.5m/s
-

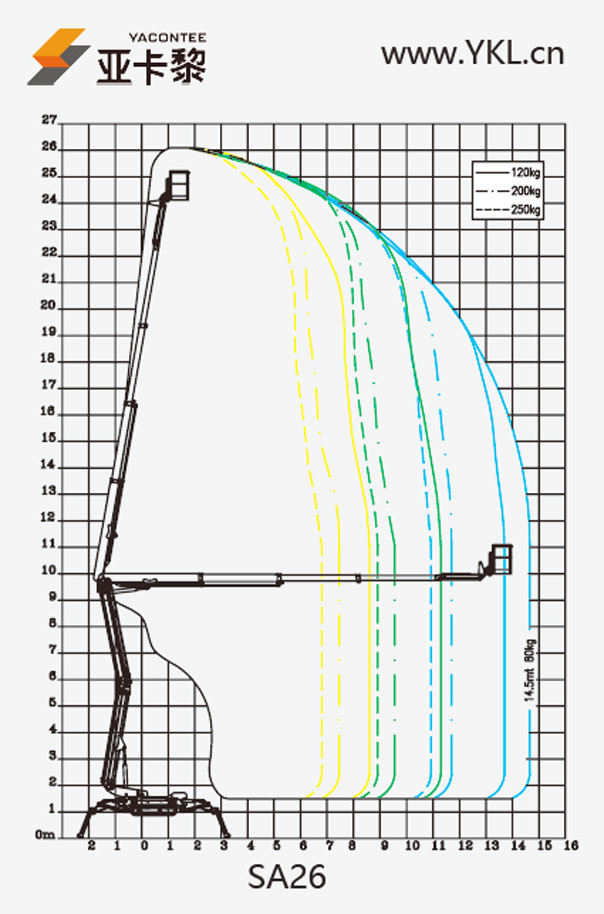

Work Diagram
